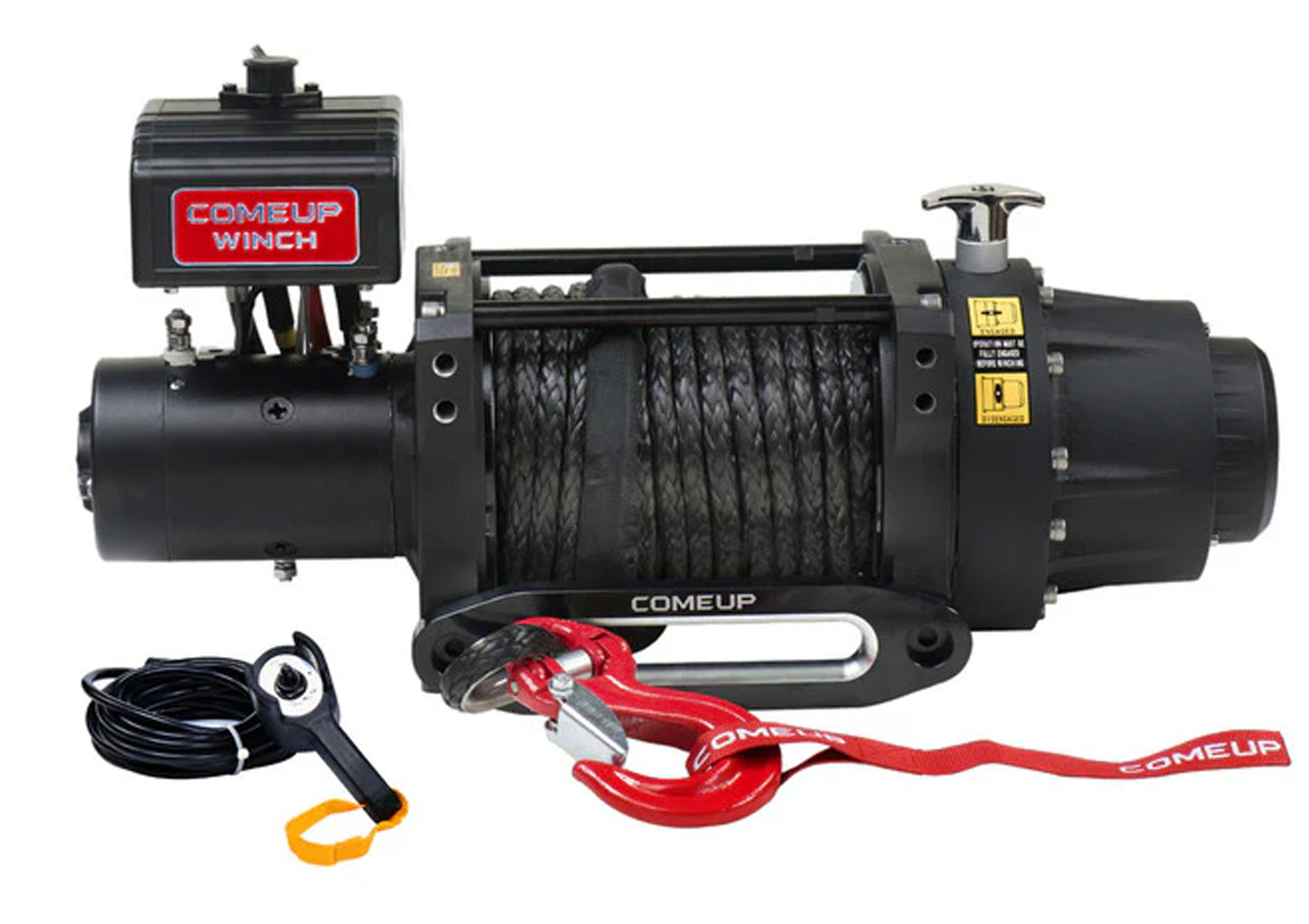

ComeUp Winch – SEAL Gen2 16.5s – 12V
$2,642.00
Product Details
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull (kg / lb) | Line Speed (mpm / fpm) | Amp Draw (A) |
|---|---|---|
| No Load | 5.6 / 18.4 | 50 |
| 1,814 / 4,000 | 3.0 / 9.8 | 90 |
| 3,629 / 8,000 | 2.5 / 8.2 | 180 |
| 4,536 / 10,000 | 1.9 / 6.2 | 230 |
| 7,484 / 16,500 | 1.4 / 4.6 | 355 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by Layer (kg / lb) | Total Rope on the Drum (m / ft) |
|---|---|---|
| 1st | 7,484 / 16,500 | 5.2 / 17.1 |
| 2nd | 6,125 / 13,503 | 11.6 / 38.1 |
| 3rd | 5,184 / 11,429 | 19.2 / 63.0 |
| 4th | 4,494 / 9,908 | 25.0 / 82.0 |
Specifications:
- Rated Line Pull 16,500 lbs (7,484 kg) single line
- Motor 5.8 hp / 4,325w 12V Series Wound
- Gear Ratio 3-Stage Planetary 343:1
- Clutch (freespooling) Rotating Ring Gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum Die Cast Housing with Steel Drum

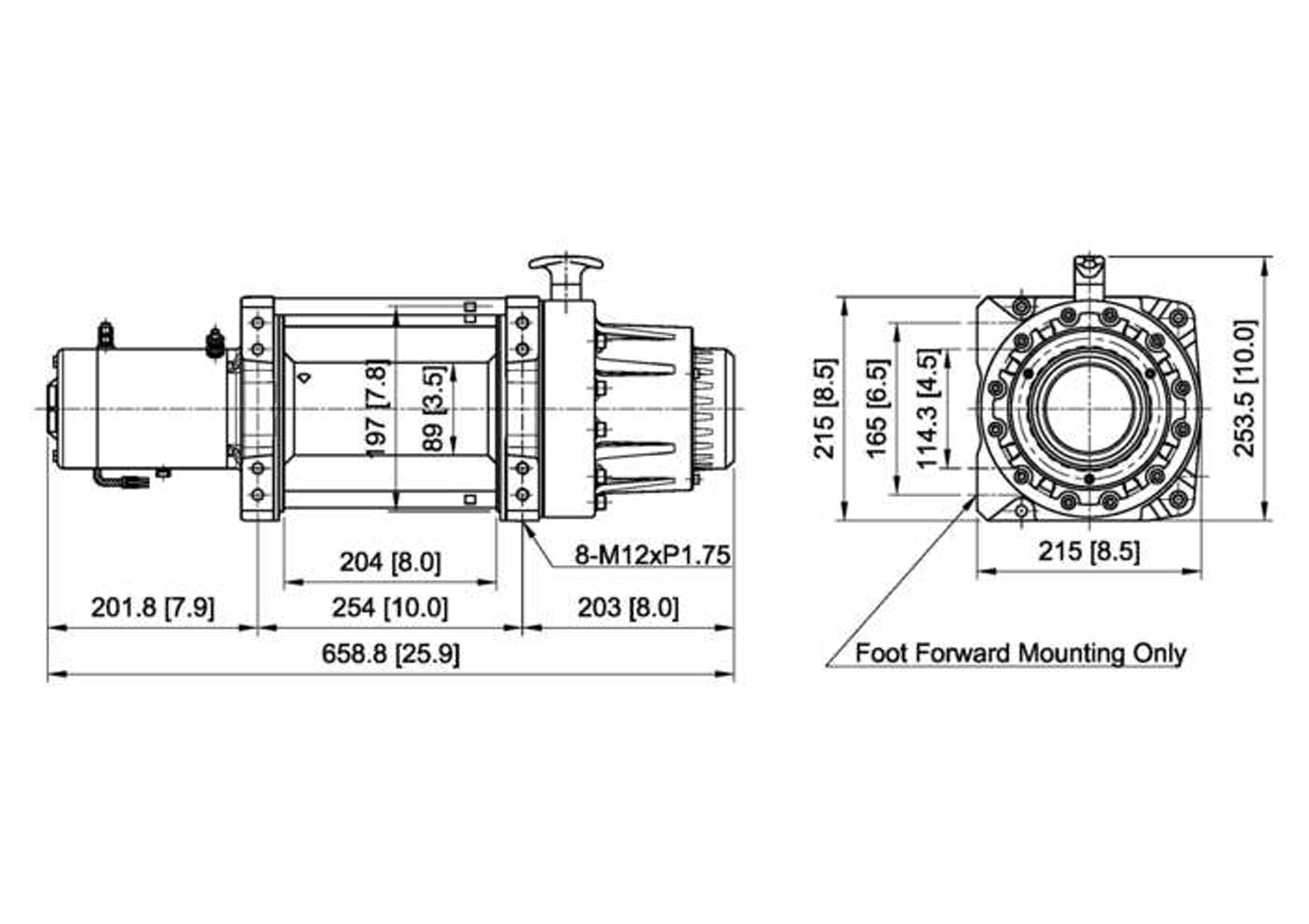

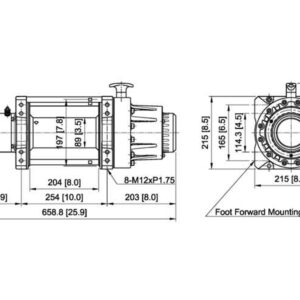

- Drum Size 3.5″ x 8″ (89 x 204 mm)
- Control waterproof remote with thermometric indicator LED w/17′ (5 m) cord
- Rope Type Synthetic Rope
- Rope Size 1/2″ x 82′ (12 mm x 25 m)
- Mounting Bolt Pattern 10″ x 4.5″ (254 x 114 mm), 10″ x 6.5″ (254 x 165 mm)
- Winch Weight 132 lb (60 kg)
- Gross Weigh 150 lb (68 kg)
- Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
- Box Dimensions 27.2″ x 10.6″ x 15.9″ (690 x 270 x 405 mm)
