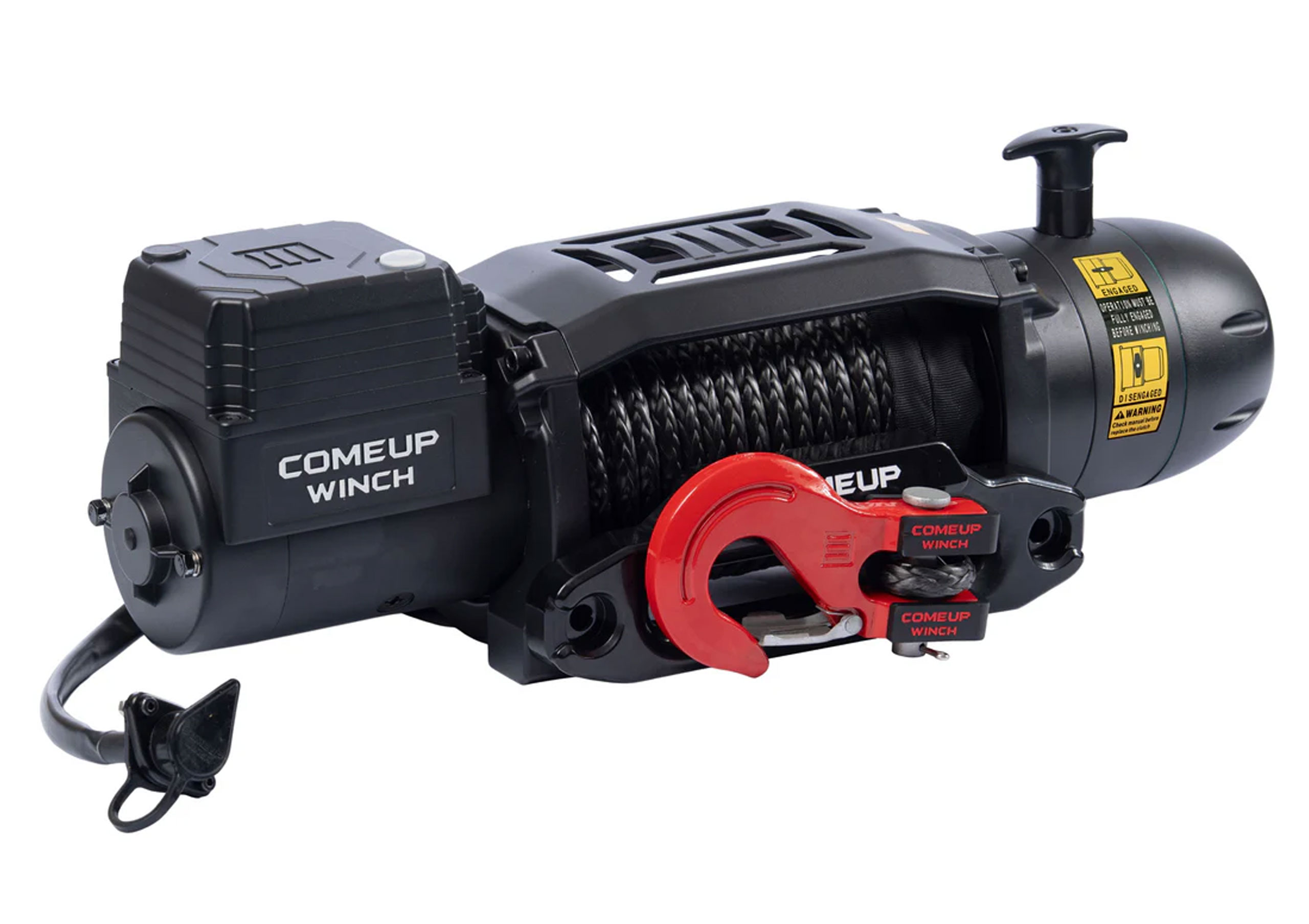

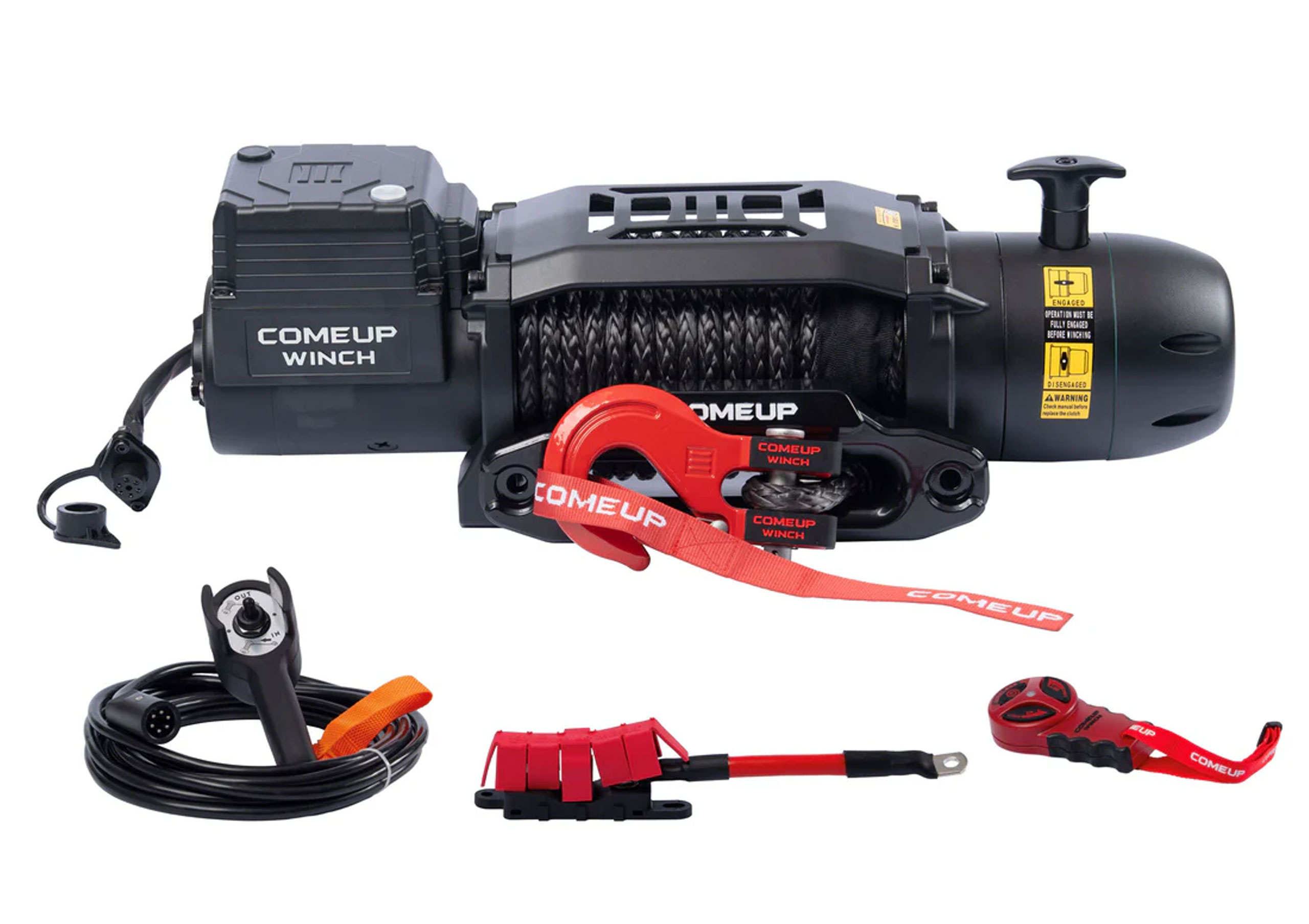

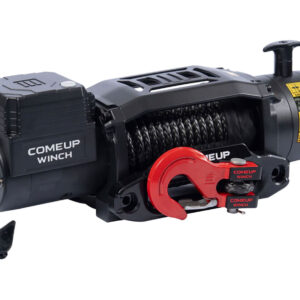

ComeUp Winch – Slim 12.5rsi – Trail Edition
$2,228.00
Product Details

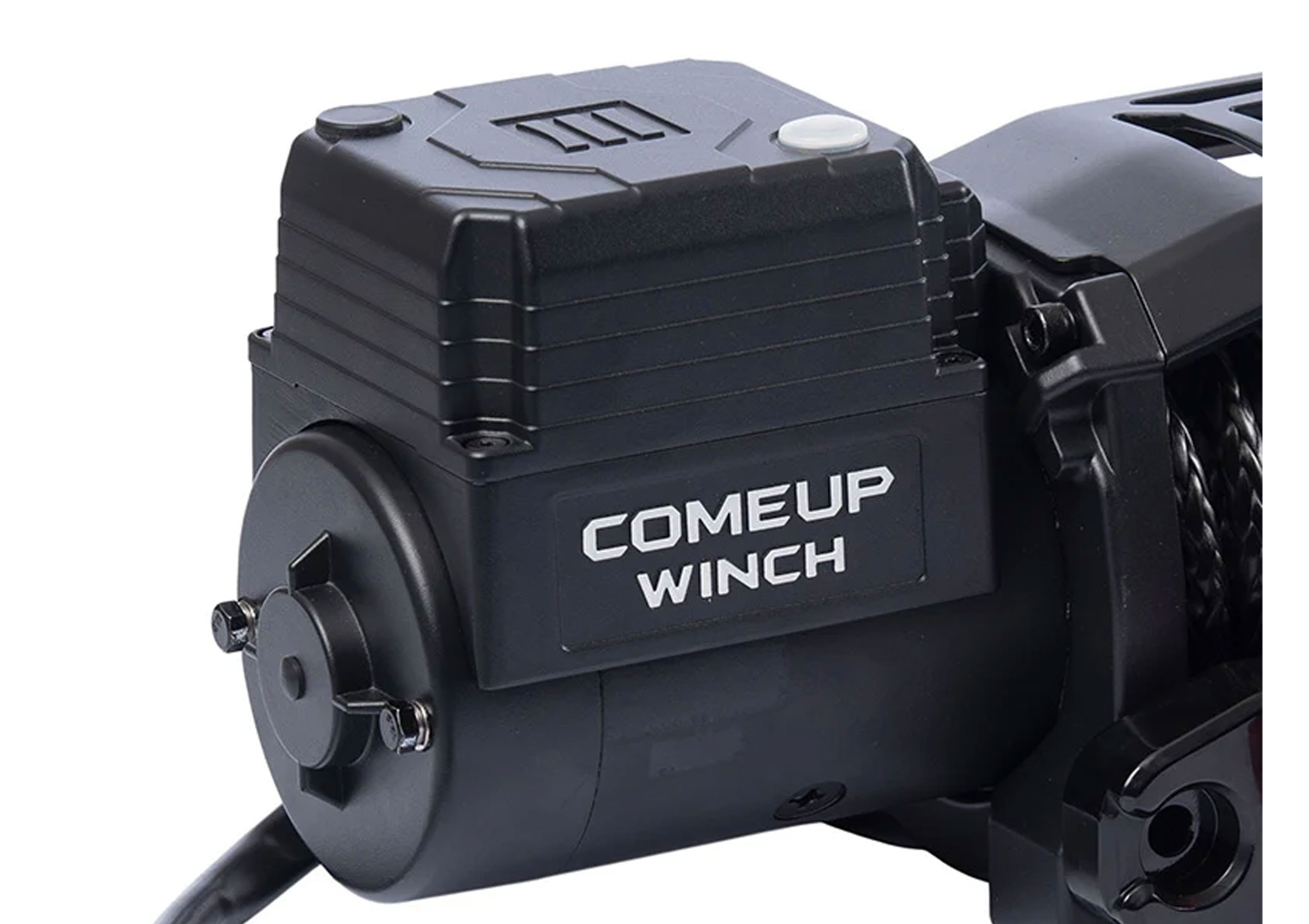

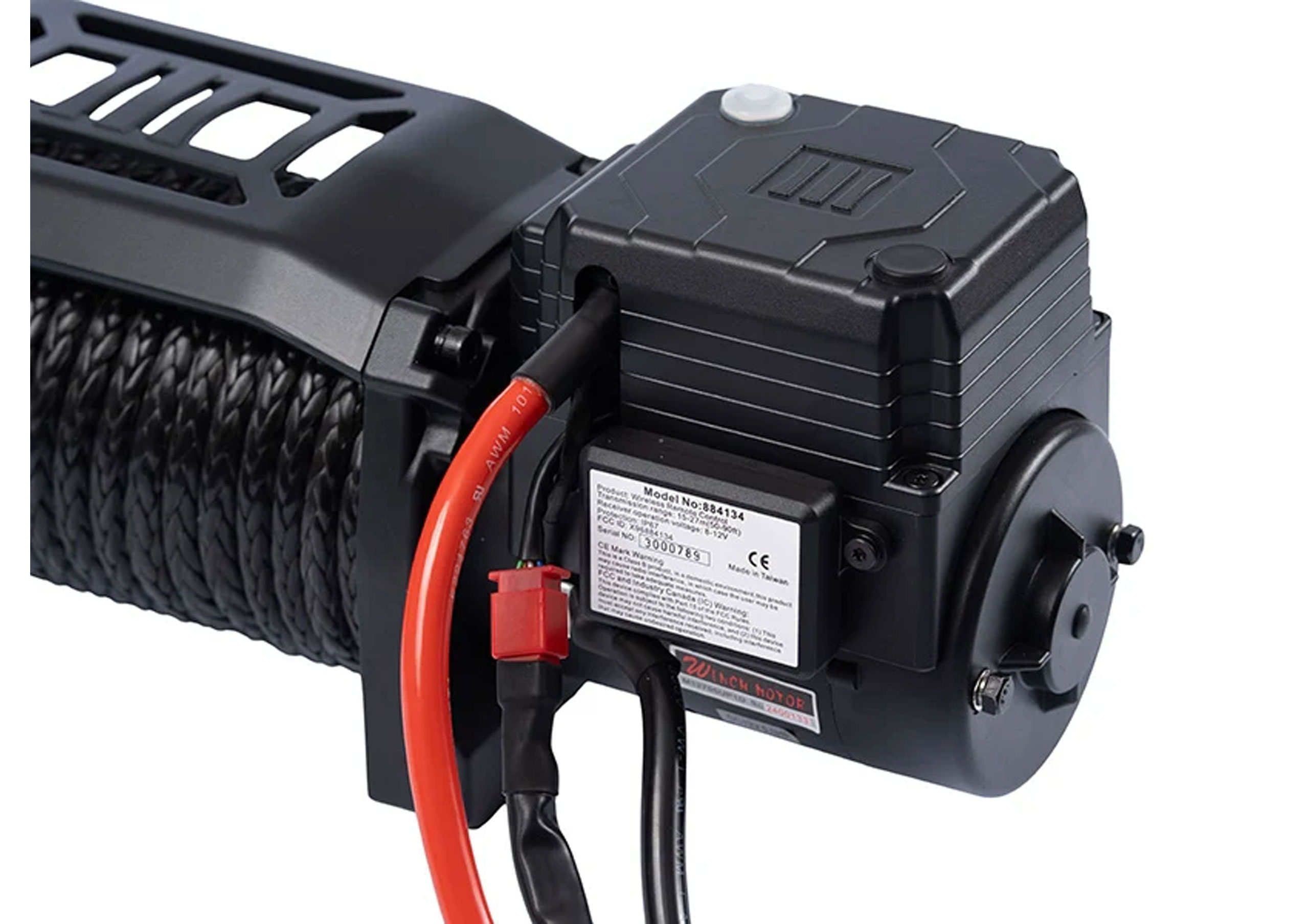

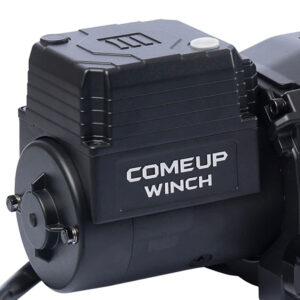

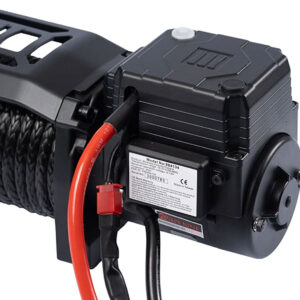

The Slim 12.5rsi Trail Edition is here. We engineered an integrated control box and motor, creating a single, radically compact unit. The result is a winch that disappears into your vehicle with a seamless, low-profile installation. It’s not just how it looks. It’s how it works. Featuring the innovative BossHook M and a specialized fuse kit for a new level of protection and capability.
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull (kg / lb) | Line Speed (mpm / fpm) | Amp Draw (A) |
|---|---|---|
| No Load | 7.7 / 25.3 | 60 |
| 907 / 2,000 | 3.4 / 11.2 | 115 |
| 1,814 / 4,000 | 2.5 / 8.2 | 160 |
| 2,722 / 6,000 | 2.0 / 6.6 | 220 |
| 3,629 / 8,000 | 1.7 / 5.6 | 275 |
| 5,670 / 12,500 | 0.9 / 3.0 | 380 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by Layer (kg / lb) | Total Rope on the Drum (m / ft) |
|---|---|---|
| 1st | 5,670 / 12,500 | 4.8 / 15.7 |
| 2nd | 4,499 / 9,919 | 10.9 / 35.7 |
| 3rd | 3.729 / 8,221 | 18.5 / 60.7 |
| 4th | 3,184 / 7,020 | 21.0 / 69.0 |
Specifications:
- Rated Line Pull 12,500 lbs (5,670 kg) single line
- Motor 5.0 hp / 3,730 w 12V Series Wound
- Gear Ratio 3-Stage Planetary 225:1
- Clutch (freespooling) Rotating Ring Gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum Die Cast Housing with Steel Drum

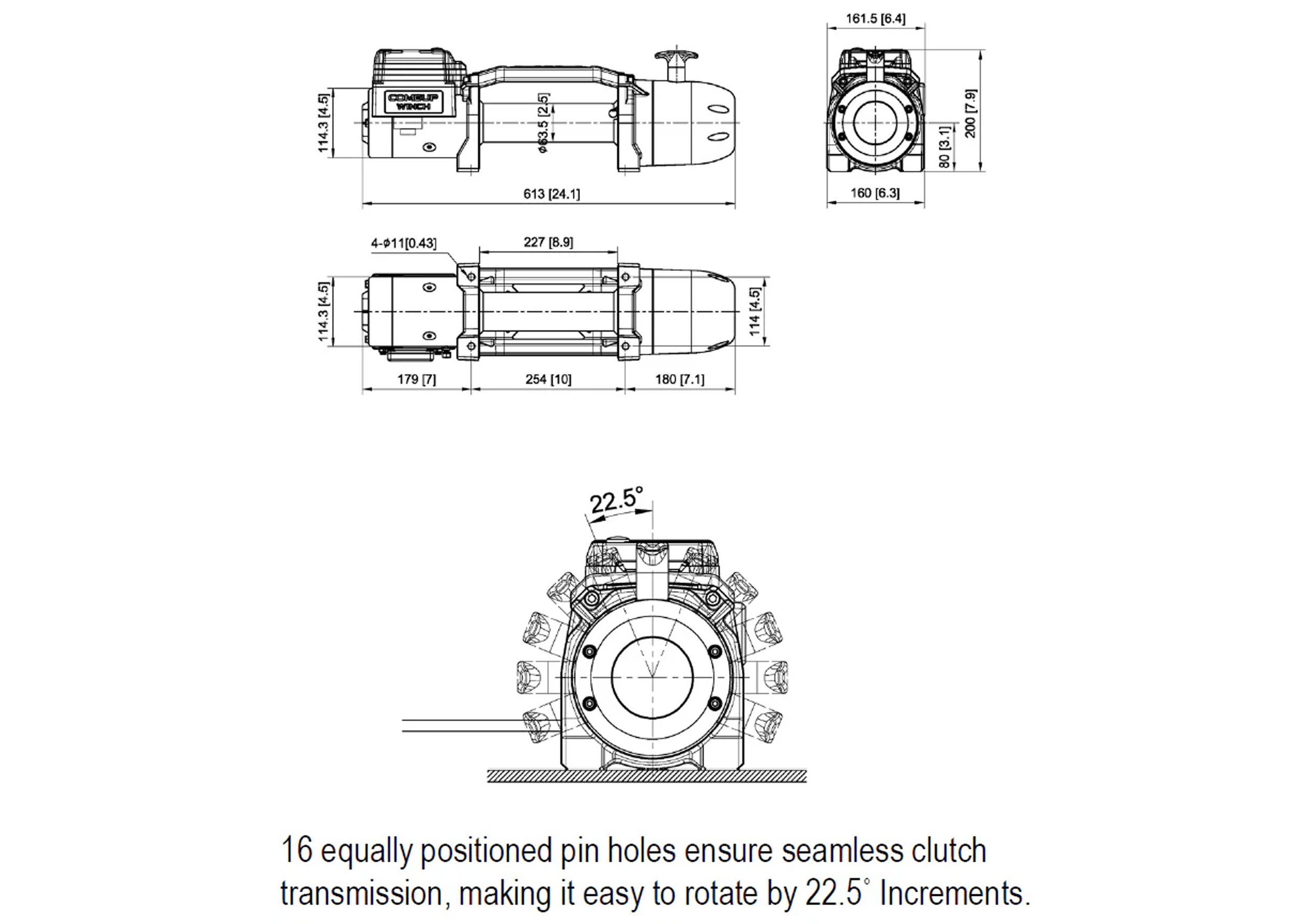

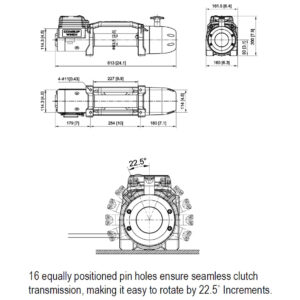

- Drum Size 2.5″ x 8.9″ (63.5 x 227 mm)
- Control Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17′ (5 m) cord
- Rope Type Synthetic Rope
- Rope Size 7/16″ x 69′ (11 mm x 21 m)
- Mounting Bolt Pattern 10″ x 4.5″ (254 x 114 mm)
- Winch Weight 61.7 lb (28 kg)
- Gross Weigh 89.1 lb (40.5 kg)
- Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
- Box Dimensions 26.9″ x 8.2″ x 16.9″ (682 x 209 x 430 mm)
