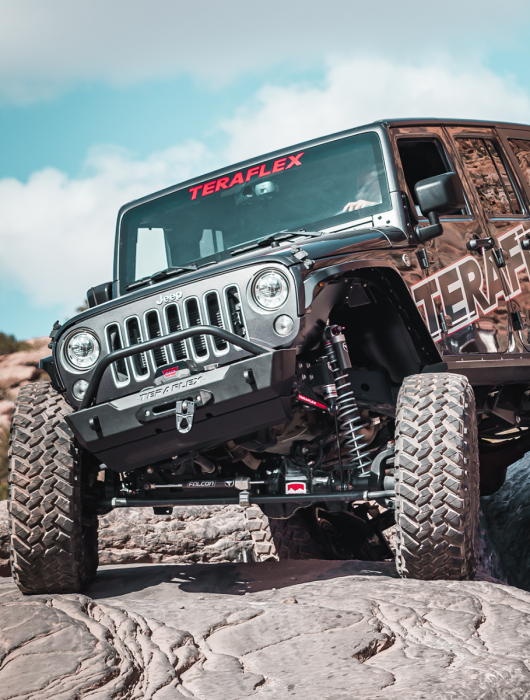

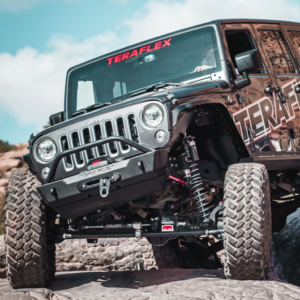

The TERA60 HD Front Coilover W/Locking-Hub Axle Assembly is designed as a direct bolt-on for the TeraFlex Coilover System and is available with pre-installed Super 60 gears, an ARB air locker, HD Steering and Big Brake kit.

Engineered to integrate seamlessly with TeraFlex JK Coilover Kits, this axle is a true direct bolt-on solution. It features integrated Coilover Mount Brackets, bump-stop strike pads, high-clearance lower control arm brackets, and reinforced upper control arm mounts to handle the increased loads and articulation of a TeraFlex/Falcon Coilover Suspension System.

Available with Super 60 ring & pinion gear ratios of 4.30, 4.88, or 5.38, this 70″ wide axle bolts directly into all JK models equipped with a TeraFlex Coilover System—eliminating the fabrication and guesswork typically associated with axle upgrades.

TERA60 HD Front axles also include HD Tie Rod and Drag Link, TeraFlex Big Brake kit, 35 spline axle shafts, sensors, TeraFlex HD wear adjustable Ball Joints and much more.

Features & Benefits

• Integrated coilover mount brackets
• Bump stop strike pad brackets
• Turn-key front axle solution for coilover-equipped JKs

Construction & Strength

• 3.25″ O.D. x 0.375″ wall DOM axle tubes (optimized strength-to-weight)
• Ductile cast iron housing with increased rib gussets
• HD ductile iron differential cover
• Smooth radius bottom design to glide over rocks and obstacles
• 1/4″ thick CNC laser-cut axle brackets
• Integrated lower control arm skid plates
• Reinforced front track bar mount (tied into spring pad for added strength)
• UV-protected triple-stage powder coat for corrosion resistance
• Asymmetric housing design for increased strength on long tube side
• HD forged inner knuckles for improved upper and lower strength

Internal Components

• 35-spline inner and outer axle shafts
• Includes 1350 series pinion yoke
• Oversized outer pinion bearing for high-load conditions
• Renewable oil reservoir feeds cooler oil to pinion bearing
• High-capacity housing for increased oil volume
• High-flow oil passages for improved lubrication
• Pre-installed inner axle seals

Brake & Hub Setup

• Includes front big brake kit with 13.3″ vented rotors
• Fixed spindle mount hub assembly

Design & Geometry

• Tera60 high-pinion front axle housing design
• Proper pinion angle for lifted JK applications
• 4–6″ lift configuration includes raised pinion angle and track bar bracket (where applicable)
• Integrated upper control arm mounts increase up-travel by ~2″ vs. typical Dana 60s
• Pre-installed upper control arm bushings
• Pre-tapped spring perch for bump stop extensions
• Pre-drilled holes for limit straps and lower spring retainers

Electronics & Compatibility

• Retains full ESP, ABS, and speedometer functionality

Specs

• WMS-WMS: 70″
• Axle tube: 3.25″ x 0.375″
• Wheel bolt pattern: 8×6.5″

Fitment

• Fits all JK Wranglers equipped with TeraFlex coilover suspension systems
• Designed for 4–6″ lift setups

Additional Info

• 100% engineered, designed, and built in the USA with new components
• 1-Year / Unlimited Mileage Warranty
